The SuperX Carbon 3 54cm Raw is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.

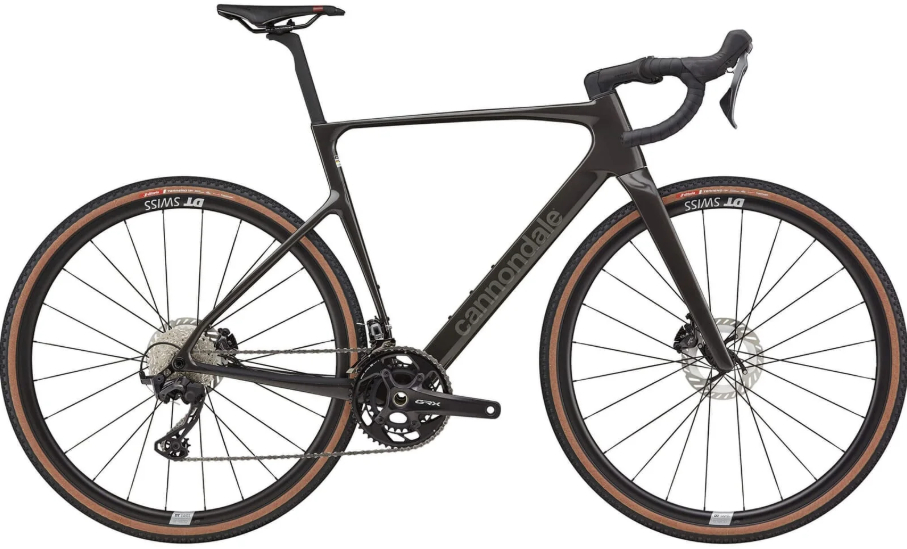

A stripped-back gravel machine, built with pure speed in mind. Podium-bound, it features less drag, lower weight, better integration and improved compliance to keep you fresh all race long.
Unbound, rough gravel, elbow-to-elbow racing, the top step.
Going full gas, battling it out between the tape, chasing podiums and PRs, speed over distance.
| Frame | SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder |
| Fork | SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset |
| Headset | Integrated, 1-1/8" - 1.5" |
| Rims / Wheels | DT Swiss G1800 Spline 24mm inner width, 25mm depth, 24h, tubeless ready |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370, 12x142mm centerlock |
| Spokes | DT Swiss Aero Comp |
| Tires | Vittoria Terreno T50, 700x40c, tubeless ready |
| Cranksets | Shimano RX 820, 48/32 |
| Bottom Bracket | Shimano BSA 68 |
| Chain | Shimano M8100, 12-speed |
| Front Derailleur | Shimano GRX 820, braze-on |
| Rear Derailleur | Shimano GRX 820, Shadow RD+ |
| Cassette | Shimano 105 7100, 11-36, 12-speed |
| Shifters | Shimano GRX 820, 12-speed |
| Handlebars | Cannondale C2, 7050 Alloy, Compact |
| Grips/Tape | Cannondale Bar Tape, 3.5mm |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Brake Levers | Shimano GRX RX820 hydraulic disc |
| Brakes | Shimano GRX 820, 160/160mm CL800 rotors |
| Pedals | Not included |
| Saddle | Prologo Dimension AGX STN |
| Seatpost | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm) |
| Colours | Raw |
| Sizes | 54cm, 56cm, 58cm |
| Brand | Cannondale |
| Model Year | 2025 |
| Barcodes | 196870277717, 196870277724, 196870277731 |
| SKUs / Part Numbers | C17045U1054, C17045U1056, C17045U1058 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
