20% Off

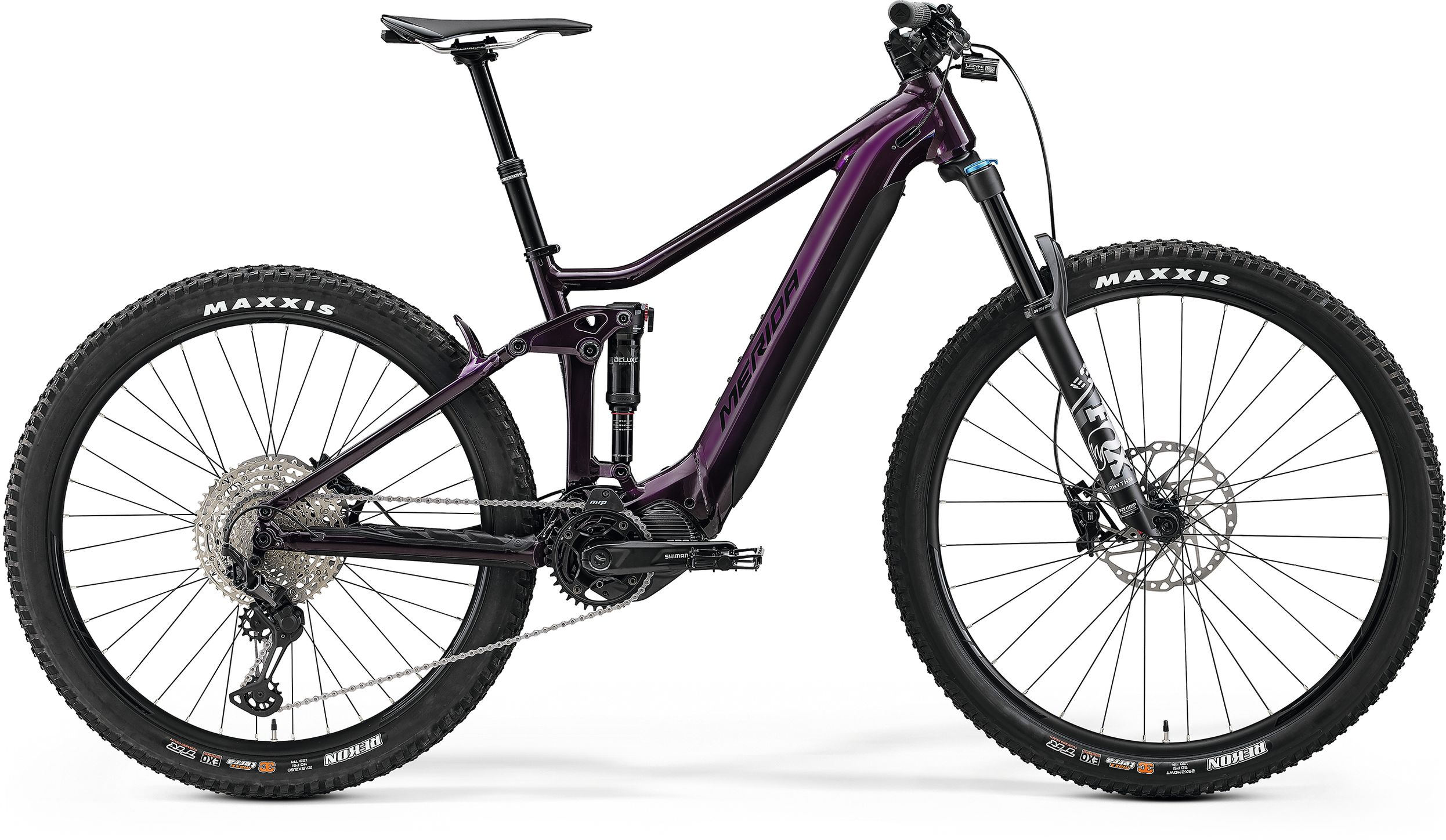

Merida eOne Forty 700 630Wh 85Nm

£4,520.00  £5,650.00
Colour:

Purple/Black

Size:

Medium

In Stock - Limited Quantities
1 Quantity Available In Limited Stock
Part Number:

N829Y1

GTIN/UPC:

N829Y1

Merida eOne-Forty
The Merida eOne-Forty is an agile and versatile eMTB, designed to handle all-day adventures with ease. Sharing the same frame and design principles as the award-winning eOne-Sixty, it offers a different ride experience thanks to a unique suspension setup and geometry adjustments that make it a playful, efficient climber.

Key Features & Ride Characteristics

Optimized Suspension and Geometry

  • Shock Stroke & Travel: Shorter shock stroke reduces rear travel to 133mm, providing a steeper seat angle and a shorter 140mm fork for a slightly steeper head angle. This geometry enhances agility, making the eOne-Forty highly maneuverable and efficient for climbs.
  • Mixed Wheel Setup: Equipped with a 29" front wheel (2.5" tire) for better obstacle clearance and a 650B rear wheel (2.6" tire) for improved traction. This combination balances precision steering, stability, and playfulness.

Advanced Power System

  • Motor & Battery: Powered by the Shimano EP8 motor with 85Nm of torque, the eOne-Forty provides powerful, consistent assistance. It includes a 630Wh battery (504Wh on S frame sizes), ensuring extended range and reliability on long rides.
  • Customizable Power: The Shimano e-Tube app allows you to tailor power settings with two profiles – one optimized for high-intensity riding and one for more relaxed cruising.

High-Performance Components

  • Suspension: FOX Rhythm 34 Float fork and RockShox Deluxe Select+ rear shock deliver a smooth, controlled ride.
  • Drivetrain: Shimano XT 12-speed derailleur for precise, reliable shifting.
  • Brakes & Hubs: Shimano SLX Boost center lock hubs and Shimano SLX 4-piston hydraulic disc brakes provide powerful stopping power and control in all conditions.

With its balance of playfulness, climbing prowess, and dependable performance, the Merida eOne-Forty is ready for any adventure, whether it’s conquering technical trails or taking on an all-day ride.

THIS IS AN EX-DISPLAY MODEL AND DOES NOT COME WITH A CHARGER.

Frame & Sizes

  • Frame Model: eOne-Forty Lite III
  • Available Sizes: S, M, L, XL

Key Components

Suspension

  • Rear Shock: RockShox Deluxe Select+ for smooth handling on rough terrain
  • Fork: FOX Rhythm 34 Float eMTB+, designed for e-MTB riding to handle demanding trails

Drivetrain

  • Motor: Shimano EP8, offering 85Nm of torque for powerful assistance
  • Battery: Shimano E8036 630Wh (S frame size has E8035 504Wh)
  • Display: Shimano SC-E7000 for easy monitoring of power settings and battery level
  • Speed Sensor: Shimano EW-SS301 for accurate speed tracking

Wheels & Tires

  • Rims: MERIDA EXPERT TR, optimized for trail performance
  • Hubs: Shimano SLX, providing smooth and reliable performance
  • Front Tire: Maxxis Rekon, for excellent traction and stability
  • Rear Tire: Maxxis Rekon, designed for grip and control on varied surfaces

Drivetrain Components

  • Chainring: Shimano CRE80-12-B
  • Crank: Shimano FCEM600
  • Cassette: Shimano M6100, 12-speed for a wide range of gearing options
  • Chain: KMC e12T EPT, durable and optimized for e-bike use
  • Shifters: Shimano SL-MT500-IL and Shimano Deore M6100 for smooth shifting
  • Rear Derailleur: Shimano XT RDM8100 Shadow+ 12-speed for precise gear changes

Brakes

  • Brakes: Shimano SLX 4-piston hydraulic disc brakes for reliable stopping power
  • Rotors: Shimano RT64 (front) / Shimano RTEM600 (rear) for heat management and efficiency

Cockpit

  • Handlebar: MERIDA EXPERT eTR for comfortable handling
  • Stem: MERIDA EXPERT eTRII, 50mm length for optimal control
  • Grips: MERIDA EXPERT EC for a secure, comfortable hold
  • Headset: MERIDA 8152 for stability and smooth steering

Additional Features

  • Seatpost: MERIDA EXPERT TR for added comfort
  • Saddle: MERIDA EXPERT CC for long-ride comfort
  • Pedals: VP VPE-527 included
  • Lights: Lezyne E-Bike Power E115 (front) / Dlight CG-214RG (rear) for enhanced visibility
  • Mudguards: Front and rear mudguards (C093-02F + C093-02R) for all-weather protection
  • Battery Cover: PC-049 for secure protection of the battery
Colours Purple/Black
Sizes Medium
Brand Merida
Model Year 2024
Barcodes N829Y1
SKUs / Part Numbers N829Y1

Please note: Manufacturers can sometimes change the specification of the products from time to time.
